fixes #181 The location/proxy_pass rule stripped the rest of the request URL. This makes sure the url arguments are passed on to backend correctly. See also: https://dev.to/danielkun/nginx-everything-about-proxypass-2ona
Architecture
Invite flow
This implementation of Rooms 2.0 is compliant with the Rooms 2.0 specification, but we add a few additional features and pages in order to improve user experience when their SSB app does not support SSB URIs.
A summary can be seen in the following chart:
When the browser and operating system detects no support for opening SSB URIs, we redirect to a fallback page which presents the user with two broad options: (1) install an SSB app that supports SSB URIs, (2) link to another page where the user can manually input the user's SSB ID in a form.

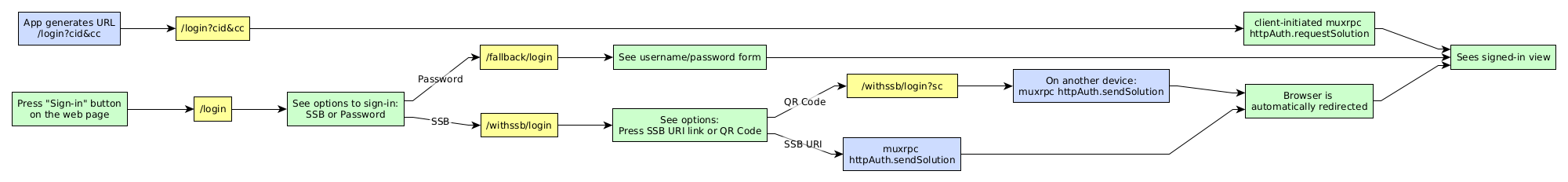

Sign-in flow
This implementation is compliant with SSB HTTP Authentication, but we add a few additional features and pages in order to improve user experience. For instance, besides conventional SSB HTTP Auth, we also render a QR code to sign-in with a remote SSB app (an SSB identity not on the device that has the browser open). We also support sign-in with username/password, what we call "fallback authentication".
A summary can be seen in the following chart:
HTTP Hosting
We currently assume a standard HTTPS server in front of go-ssb-room to facilitate TLS termination and certificate management. This should be possible with most modern HTTP servers since it's a pretty standard practice, known as reverse proxying.
Two bits of rationale:
- People usually want to have more than one site on their server. Put differently, we could have LetsEncrypt inside the go-ssb-room server but it would have to listen on port :443—blocking the use of other domains on the same IP.
- Listening on :443 can be pretty annoying (you might need root privileges or similar capabilities).
go-ssb-room needs three headers to function properly, which need to be forwarded by the webserver.
X-Forwarded-Host
as which domain name the room is running (enforce strict TLS checking)X-Forwarded-Proto
to ensure that TLS is used (and redirect if necessary)X-Forwarded-For
the remote TCP/IP address of the client accessing the room (used for rate limiting)
nginx-example.conf contains an nginx config that we use for hermies.club. To get a wildcard TLS certificate you can follow the steps in this article, which uses the certbot utility.
